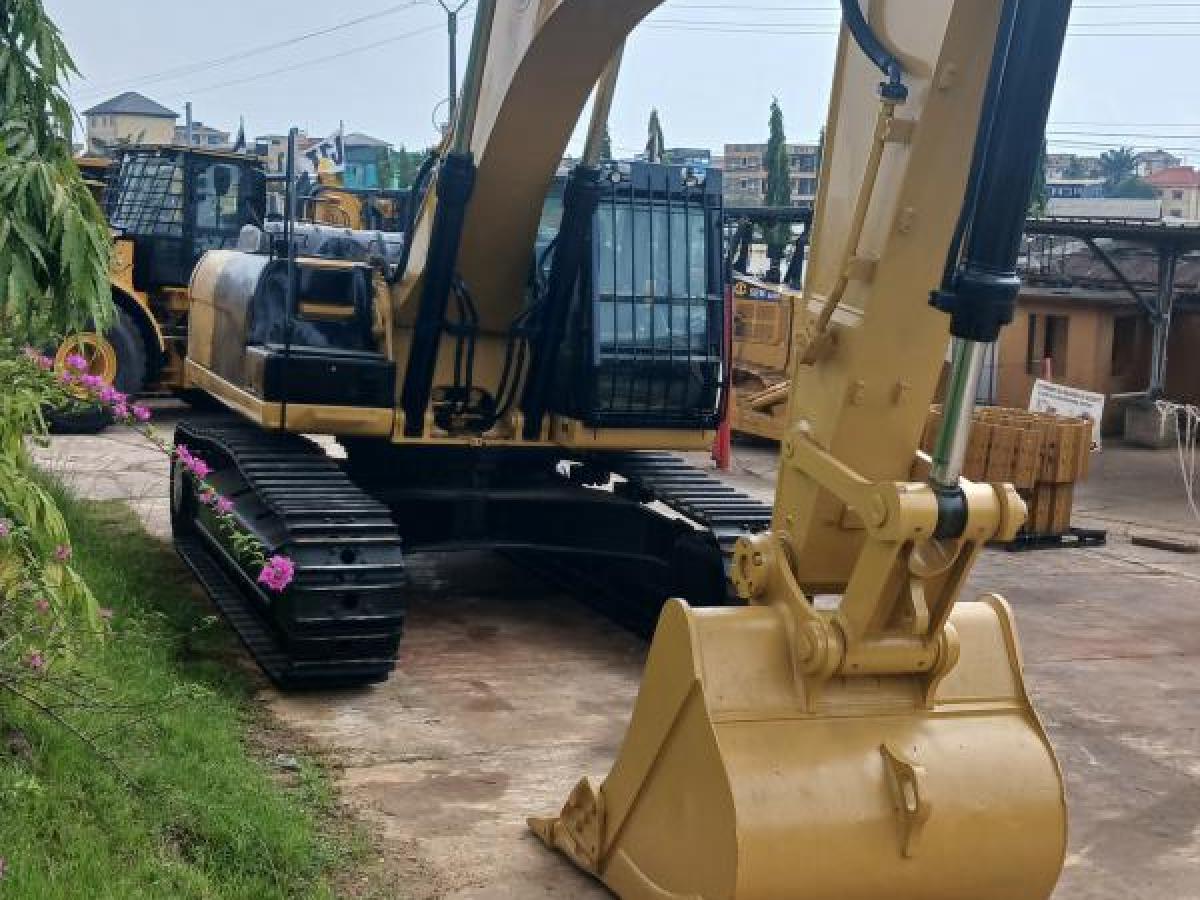

Excavators 336D2
Request a Quote Download BrochureKey Information
Condition
CAT® Certified Used
Year
2017
Work hours
4821
Overview
Key Information
Condition
CAT® Certified Used
Year
2017
Work hours
4821
Location
Cameoun
VIN
HBK10263
Availability
Available nowThis machine is in stock. Please send us your request along with your location so that we can inform you of the delivery times.
Certification
Contact Our Experts
Morocco
International
Monday to Friday 8am-5:30pm (UTC)
Technical specifications for 336D2
- ENGINE
- Net Power - ISO 9249195 kW
- Engine Power - ISO 14396195 kW
- Engine ModelC7.1 Cat
- Bore105 mm
- Stroke135 mm
- Displacement7.1 l
- HYDRAULIC SYSTEM
- Main Hydraulic Circuit: Maximum Flow559 l/min (148 US gal/min)
- SWING MECHANISM
- Swing Speed8.74 RPM
- MAINTENANCE CAPACITIES
- Fuel Tank Capacity600 l
- Cooling System19 l
- Engine Oil20 l
- Swing Drive - Each18 l
- Final Drive - Each8 l
- Hydraulic System - Including Tank373 l
- Hydraulic Tank161 l
- DIMENSIONS
- BoomStandard 6.5 m (21'4")
- ArmStandard 3.2 m (10'6")
- BucketHD 1.88 m³ (2.46 yd³)
- Shipping Height: Cab Top3170 mm
- Handrail Height3160 mm
- Counterweight Ground Clearance1250 mm
- Ground Clearance510 mm
- Track Width2590 mm
- WORKING RANGES AND FORCES
- Maximum Digging Depth7520 mm
- BoomStandard 6.5 m (21'4")
- ArmStandard 3.2 m (10'6")
- BucketHD 1.88 m³ (2.46 yd³)
- Maximum Loading Height7080 mm
- Minimum Loading Height2580 mm
- Maximum Cutting Depth for 8 ft Flat Bottom7360 mm
